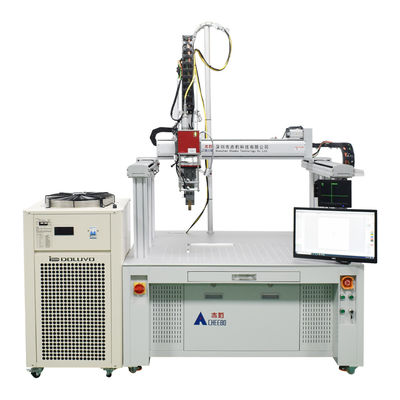

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

All Category

배터리 부속물

저희와 연락

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W High Precision Fully Automatic Fiber Laser Welding Machine with Gantry Motion Structure for Square Li Ion Battery Packs

Brand Name:	CHEEO
MOQ:	1
가격:	$10,000-11,000

Detail Information

Product Description

Detail Information

원래 장소:

광동, 중국

출력 전원:

6000W

레이저 파워:

1500와트/2000와트/3000와트/4000와트/6000와트

용접 속도:

10-100mm/초

위치 정확도:

± 0.05mm

레이저 파장:

1080

주파수 조절:

30-5kHz

조정할 수 있는 전원:

10-100%

정확도를 재배치합니다:

± 0.01mm

빠른 포지셔닝 속도:

1000mm/sec (xyaxis), 500mm/sec (zaxis)

빔 품질:

<1.4㎡

전력 안정성:

초점에 초점을 맞추고 있습니다:

F=180mm

최대 기계가공 사이즈:

800*600mm/1000*800

전체적인 전력 소비:

3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)

전체 차원:

L1343XW1454XH22235mm

강조하다:

6000W Fiber Laser Welding Machine

High Precision Battery Laser Welding Machine

Gantry Motion Structure Laser Welding Equipment

Product Description

New Fiber Laser Welding Machine - Fully Automatic Square Li-Ion Battery Pack Laser Welding System

This advanced fiber laser welding system integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of performing precise welding of any planar geometric shape (points, lines, circles), it delivers efficient, safe, and stable high-power fiber laser welding performance, particularly optimized for lithium battery applications.

Key Features:

Utilizes advanced fiber laser technology specifically designed for high reflective materials (aluminum)
Proprietary gantry machine tool design ensures exceptional rigidity and stability
High beam quality, reliability, and low operating costs make it ideal for lithium-ion welding
Long-life gantry dual-drive motion platform with large welding range
Precision guide rail transmission with high-response servo motors for accuracy and speed
Produces fine weld spots with deep penetration, minimal taper, and smooth surfaces
User-friendly PC industrial computer with intuitive CNC programming system
Adjustable laser power with low energy consumption and minimal maintenance
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications:

Laser Power	1500W/2000W/3000W/4000W/6000W	Welding Speed	10-100mm/s
Position Accuracy	±0.05mm	Laser Wavelength	1080
Regulating Frequency	30-5KHZ	Adjustable Power Range	10-100%
Repositioning Accuracy	±0.01mm	Rapid Positioning Speed	1000mm/sec (XY axis), 500mm/sec (Z axis)
Coolant System	External water cooling	Operating Mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power Stability	≦3%
Laser Output Mode	CW/PWM	Maximum Machining Size	800600mm/1000800mm
Laser Focusing Focal Length	F=180mm	CCD Positioning Accuracy	0.01mm (Optional)
Fiber Core	20um/50pm/100pm (Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Dimensions	L1343xW1454xH22235mm	Machine Weight	Approx. 500KG

Product Details

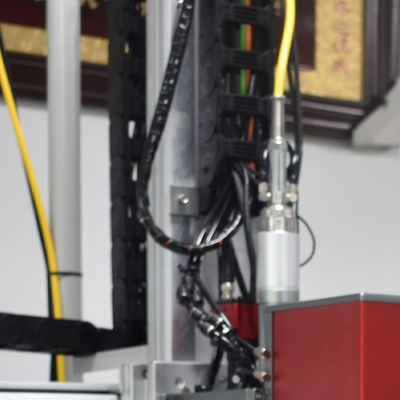

Welding Point Monitoring & Autofocus System

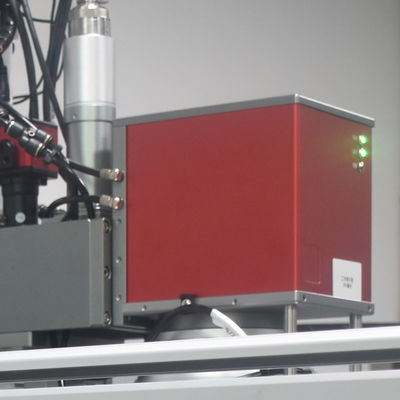

High Precision Welding Joint of Vibrating Mirror

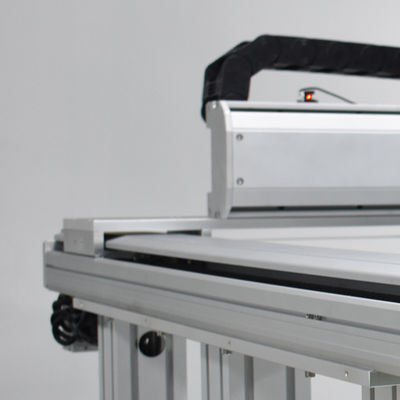

Rail Module

Welding Product Diagram

Frequently Asked Questions

Q: How do I know which model is right for my application?

A: Please provide: 1) Battery model and type, 2) Welding materials and thickness. Our experienced team will recommend the optimal solution.

Q: What is required for machine installation and operation?

A: Our technicians pre-install all major components before shipping. We provide detailed training videos and manuals for minor assembly. 95% of customers successfully self-install.

Q: Is there a minimum order quantity?

A: No MOQ requirements. We provide full support whether you need 1 unit or 100 units.

Q: How is quality controlled in your factory?

A: Each unit undergoes 20+ rigorous tests. Our QC team verifies all welding performance before shipment.

Q: What if I encounter technical issues?

A: Contact us immediately - do not attempt repairs. We guarantee 24-hour response to resolve any issues.
