Automatic 6000W Battery Laser Welding Machine with 1 Year Warranty and 3 Years Core Components Warranty for Prismatic Battery Packs

All Category

배터리 부속물

저희와 연락

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

Automatic 6000W Battery Laser Welding Machine with 1 Year Warranty and 3 Years Core Components Warranty for Prismatic Battery Packs

Brand Name:	CHEEO
MOQ:	1
가격:	$10,000-11,000

Detail Information

Product Description

Detail Information

원래 장소:

광동, 중국

출력 전원:

6000W

무게:

500kg

레이저 파워:

1500와트/2000와트/3000와트/4000와트/6000와트

용접 속도:

10-100mm/초

위치 정확도:

± 0.05mm

레이저 파장:

1080

주파수 조절:

30-5kHz

조정 가능한 전력 범위:

10-100%

정확도를 재배치합니다:

± 0.01mm

빠른 위치 정확도:

1000mm/sec (xyaxis) 、 500mm/sec (zaxis)

빔 품질:

<1.4㎡

전력 안정성:

초점 거리에 초점을 맞추는 레이저:

F=180mm

최대 기계가공 사이즈:

800*600mm/1000*800

전체 차원:

L1343XW1454XH22235mm

강조하다:

6000W Battery Laser Welding Machine

1 Year Warranty Prismatic Battery Pack Laser Welder

3 Years Core Components Warranty Lithium Polymer Battery Laser Welding Machine

Product Description

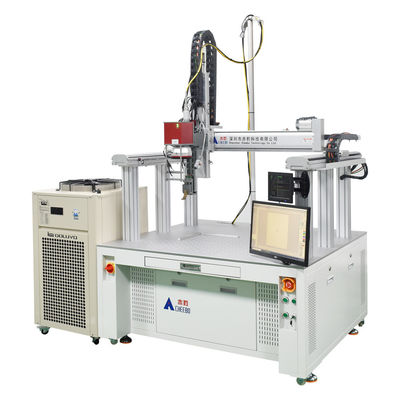

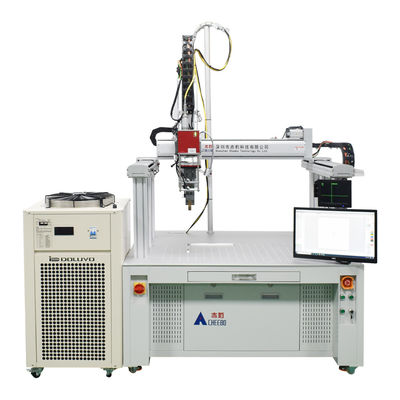

Automatic 1500W/2000W Prismatic Battery Pack Laser Welder

This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance in lithium battery welding applications.

Key Features

Advanced fiber laser source specifically designed for high reflective materials (aluminum)
Proprietary gantry machine tool design for superior rigidity and stability
High beam quality with excellent stability and reliability
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal taper
Pollution-free process with small heat affected zone
User-friendly PC industrial computer with simple programming system
Adjustable laser power with low energy consumption
Optional CCD visual positioning and automatic focal length measurement

Technical Specifications

Laser Power	1500W/2000W/3000W/4000W/6000W
Welding Speed	10-100mm/s
Position Accuracy	±0.05mm
Laser Wavelength	1080nm
Repositioning Accuracy	±0.01mm
Cooling System	External water cooling
Maximum Machining Size	800×600mm/1000×800mm
Machine Weight	Approx. 500KG

Product Details

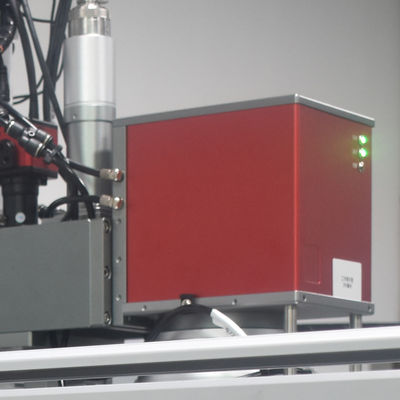

Welding Point Monitoring & Autofocus

High Precision Welding Joint

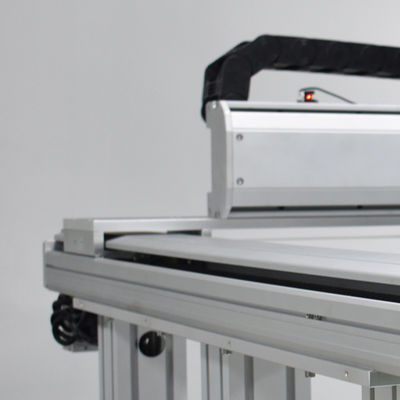

Rail Module

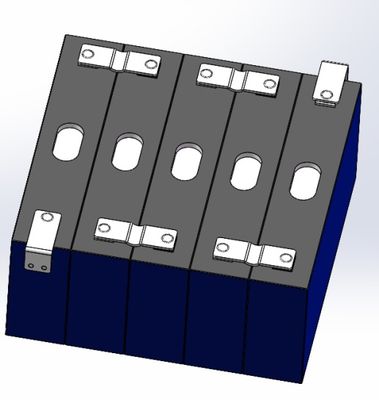

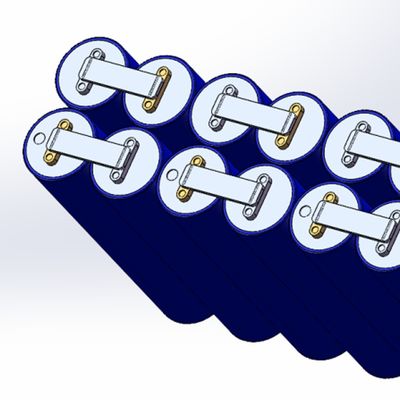

Welding Product Diagram

Frequently Asked Questions

Q: How do I know which model suits my needs?

A: Please provide your battery model/type and welding material/thickness specifications. Our experienced team will recommend the optimal solution.

Q: What's included in machine installation?

A: Machines are pre-installed before shipping. We provide detailed training videos and manuals for minor component setup - 95% of customers can self-install.

Q: Is there a minimum order quantity?

A: No MOQ requirements - we support orders from single units to bulk purchases.

Q: How is quality controlled?

A: Each unit undergoes 20+ rigorous tests, with final QC verifying welding performance before shipment.

Q: What if I encounter technical issues?

A: Contact us immediately - our team responds within 24 hours. Avoid unauthorized repairs to prevent voiding warranty.
