배터리 레이저 용접기

6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

All Category

배터리 부속물

저희와 연락

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W Battery Laser Welding Machine with 3 Years Warranty for High Precision Battery Welding

Brand Name:	CHEEO
MOQ:	1
가격:	$10,000-11,000

Detail Information

Product Description

Detail Information

원래 장소:

광동, 중국

출력 전원:

6000W

레이저 파워:

1500와트/2000와트/3000와트/4000와트/6000와트

용접 속도:

10-100mm/초

위치 정확도:

± 0.05mm

레이저 파장:

1080

주파수 조절:

30-5kHz

조정 가능한 전력 범위:

10-100%

정확도를 재배치합니다:

± 0.01mm

빠른 위치 정확도:

1000mm/sec (xyaxis) 、 500mm/sec (zaxis)

빔 품질:

<1.4㎡

전력 안정성:

초점 거리에 초점을 맞추는 레이저:

F=180mm

최대 기계가공 사이즈:

800*600mm/1000*800

전체적인 전력 소비:

3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)

전체 차원:

L1343XW1454XH22235mm

강조하다:

6000W Battery Laser Welding Machine

3 Years Warranty Laser Welding Equipment

Battery welding Fiber Laser Welding Machine

Product Description

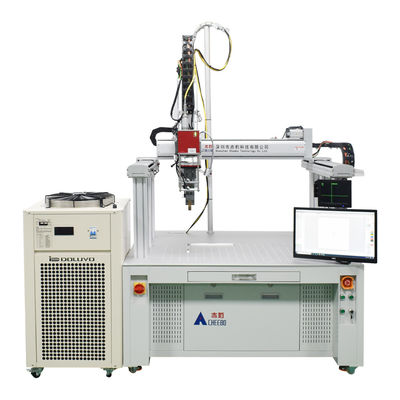

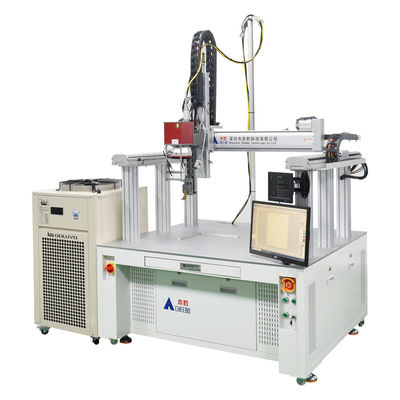

18650 Battery Case Pack Laser Welding Machine

This high-power fiber laser welding machine integrates fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance for lithium battery welding processes.

Key Features:

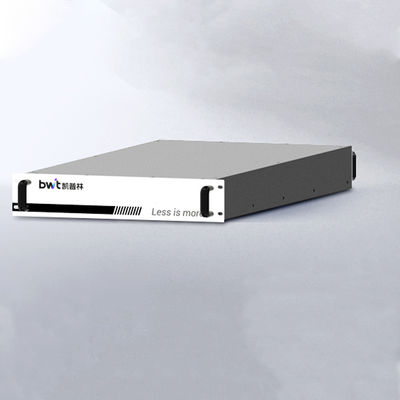

Advanced fiber laser source specifically designed for high reflective materials (aluminum)
Gantry machine tool with excellent rigidity and stability
High beam quality, stability, reliability, and low operating costs
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal taper
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low power consumption
Automatic top pressure welding device reduces fixture requirements
Optional CCD visual positioning and automatic focal length measurement systems

Technical Specifications:

Laser power	1500W/2000W/3000W/4000W/6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning accuracy	1000mm/sec(XY axis), 500mm/sec(Z axis)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Laser light output mode	CW/PWM	Laser power adjustment range	1-100
Laser focusing focal length	F=180mm	CCD positioning accuracy	0.01mm(Optional)
Maximum machining size	800600mm/1000800	Ambient temperature	5-45℃
Fiber core	20um/50pm/100pm(Optional)	Overall Power Consumption	3.5KW(2000W)/5.5KW(3000W)/8KW(4000W)/10KW(6000W)
Overall dimension	L1343xW1454xH22235mm	Machine weight	About 500KG

Product Details

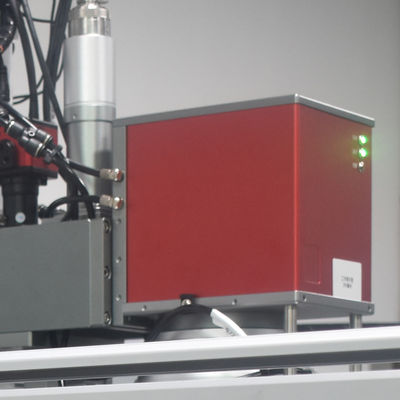

Welding Point Monitoring, Autofocus

High Precision Welding Joint of Vibrating Mirror

Rail Module

Welding Product Diagram

Frequently Asked Questions

Q: I don't know which model suits my needs?

A: Please provide your battery model/type and welding materials/thickness. Our experienced team will recommend the best solution.

Q: How to install and operate the machine?

A: Our technicians pre-install the machine before shipping. We provide detailed training videos and manuals - 95% of customers can self-learn.

Q: What is your minimum order quantity?

A: No minimum order quantity - we support orders from 1 to 100+ units.

Q: How is your quality control?

A: Each unit undergoes 20+ tests. Our QC team verifies welding performance before shipment.

Q: What if I encounter machine problems?

A: Contact us immediately - don't attempt repairs. We respond within 24 hours to resolve issues.
