| Brand Name: | CHEEO |
| MOQ: | 1 |
| 가격: | $10,000-11,000 |

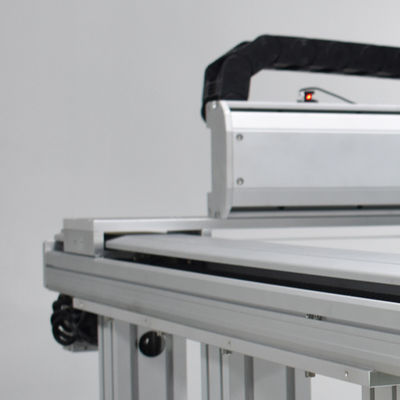

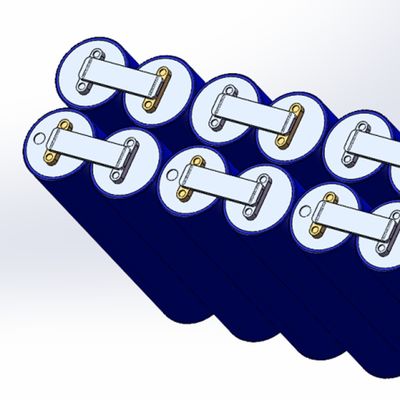

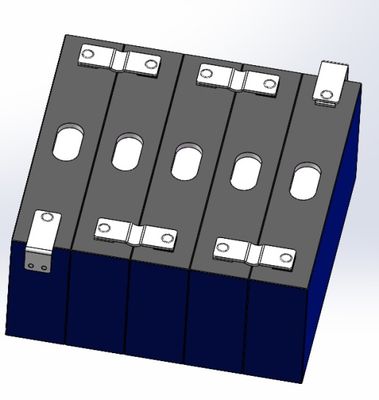

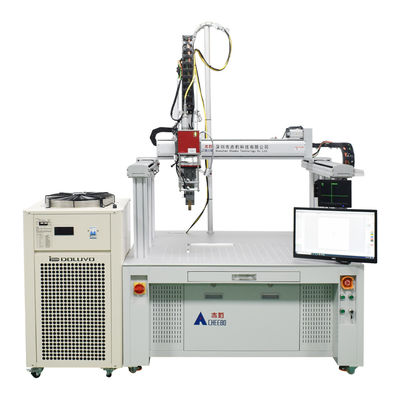

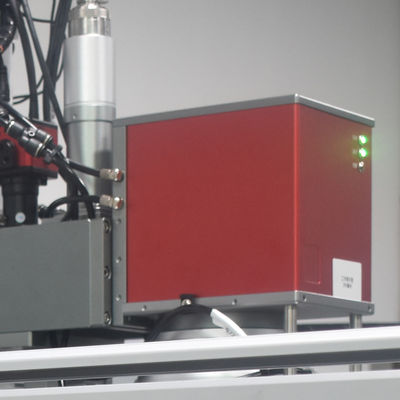

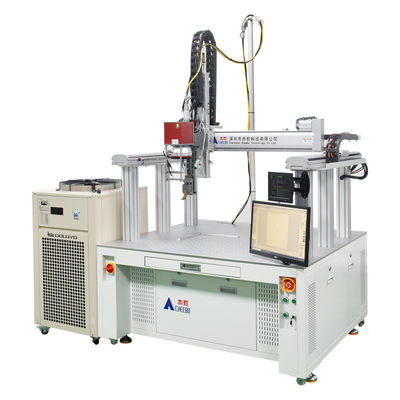

This model integrates important components such as fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. It performs welding of any planar geometric shape trajectory (points, lines, circles) and is an efficient, safe, and stable high-power fiber laser welding machine optimized for lithium battery welding processes.
| Laser Power | 1500W/2000W/3000W/4000W/6000W | Welding Speed | 10-100mm/s |
|---|---|---|---|
| Position Accuracy | ±0.05mm | Laser Wavelength | 1080 |
| Regulating Frequency | 30-5KHZ | Adjustable Power Range | 10-100% |
| Repositioning Accuracy | ±0.01mm | Rapid Positioning Accuracy | 1000mm/sec (XY axis), 500mm/sec (Z axis) |
| Coolant System | External water cooling | Operating Mode | Continuous/Modulation |
| Beam Quality | <1.4㎡ | Power Stability | ≦3% |
| Laser Output Mode | CW/PWM | Laser Power Adjustment Range | 1-100 |
| Laser Focusing Focal Length | F=180mm | CCD Positioning Accuracy | 0.01mm (Optional) |
| Maximum Machining Size | 800*600mm/1000*800 | Ambient Temperature | 5-45℃ |
| Fiber Core | 20um/50pm/100pm (Optional) | Overall Power Consumption | 3.5KW (2000W)/5.5KW (3000W)/8KW (4000W)/10KW (6000W) |
| Overall Dimension | L1343xW1454xH22235mm | Machine Weight | About 500KG |
|
|
