배터리 레이저 용접기

6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

All Category

배터리 부속물

저희와 연락

Ms. Naomi Zhang

cheebo@126.com

+86 199 2880 7536

Contact Now

6000W Output Power 1080 Wavelength Battery Laser Welding Machine with 3 Years Warranty

Brand Name:	CHEEO
MOQ:	1
가격:	$10,000-11,000

Detail Information

Product Description

Detail Information

원래 장소:

광동, 중국

출력 전원:

6000W

레이저 파장:

1080

무게:

500kg

레이저 파워:

1500와트/2000와트/3000와트/4000와트/6000와트

용접 속도:

10-100mm/초

위치 정확도:

± 0.05mm

주파수 조절:

30-5kHz

조정 가능한 전력 범위:

10-100%

정확도를 재배치합니다:

± 0.01mm

빠른 위치 정확도:

1000mm/sec (xyaxis) 、 500mm/sec (zaxis)

빔 품질:

<1.4㎡

전력 안정성:

초점 거리에 초점을 맞추는 레이저:

F=180mm

최대 기계가공 사이즈:

800*600mm/1000*800

전체 차원:

L1343XW1454XH22235mm

강조하다:

6000W Output Power Battery Laser Welding Machine

1080 Wavelength Laser Welding Equipment

3 Years Warranty Fiber Laser Welding Machine

Product Description

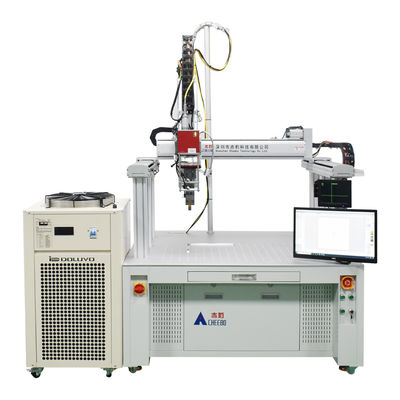

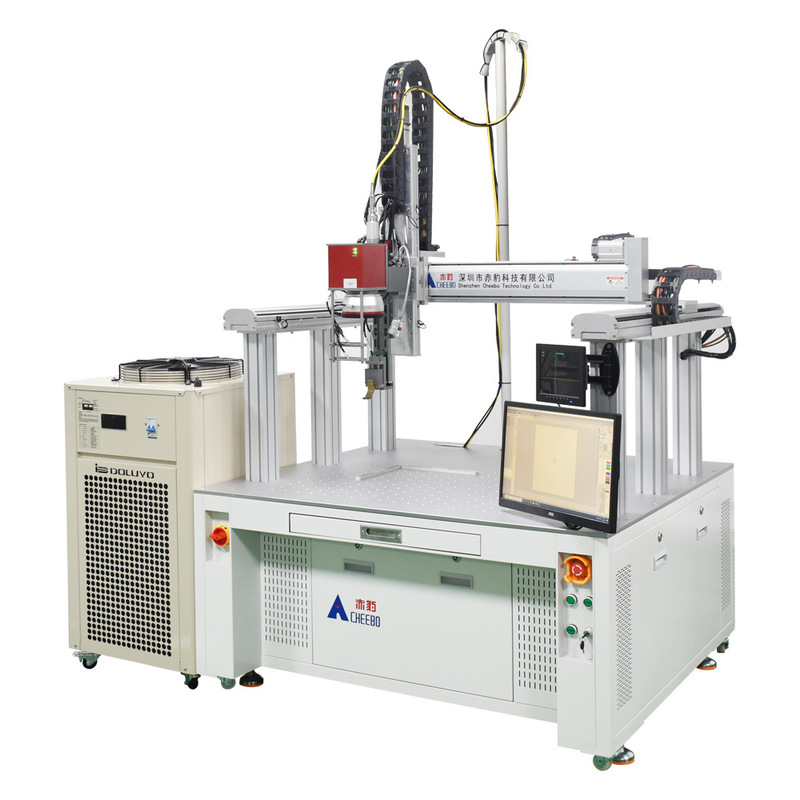

Fully Automatic Metal Laser Welding Machine

This high-performance fiber laser welding machine integrates key components including fiber optic continuous laser, gantry motion structure, high-power mirror welding head, water cooling system, and PC control system. Capable of welding any planar geometric shape trajectory (points, lines, circles), it delivers exceptional performance for lithium battery welding applications.

Key Features:

Advanced fiber laser source optimized for high reflective materials (aluminum)
Gantry machine tool design with superior rigidity and stability
High beam quality with excellent stability and low operating costs
Precision guide rail transmission with high-response servo motors
Fine welding spots with high melting depth and minimal heat affected zone
PC industrial computer with user-friendly CNC programming system
Adjustable laser power with low energy consumption
Optional CCD visual positioning and automatic focal length measurement

Technical Specifications:

Parameter	Value	Parameter	Value
Laser power	1500W-6000W	Welding speed	10-100mm/s
Position accuracy	±0.05mm	Laser Wavelength	1080
Regulating frequency	30-5KHZ	Adjustable power range	10-100%
Repositioning Accuracy	±0.01mm	Rapid positioning speed	1000mm/sec (XY), 500mm/sec (Z)
Coolant system	External water cooling	Operating mode	Continuous/Modulation
Beam Quality	<1.4㎡	Power stability	≦3%
Maximum machining size	800×600mm or 1000×800mm	Overall Power Consumption	3.5KW-10KW
Dimensions	1343×1454×22235mm	Machine weight	≈500KG

Product Gallery:

Frequently Asked Questions

Q: How do I choose the right model for my needs?

A: Please provide your battery model/type and welding material/thickness. Our experienced team will recommend the optimal configuration.

Q: What support is provided for machine installation?

A: We provide detailed training videos and manuals with each machine. 95% of customers successfully complete installation without additional support.

Q: Is there a minimum order quantity?

A: No MOQ - we support orders from single units to large volume purchases.

Q: How is quality controlled?

A: Each unit undergoes 20+ rigorous tests, including final welding performance verification by our QC team.

Q: What if I encounter technical issues?

A: Contact us immediately - our technical team guarantees response within 24 hours to resolve any problems.
